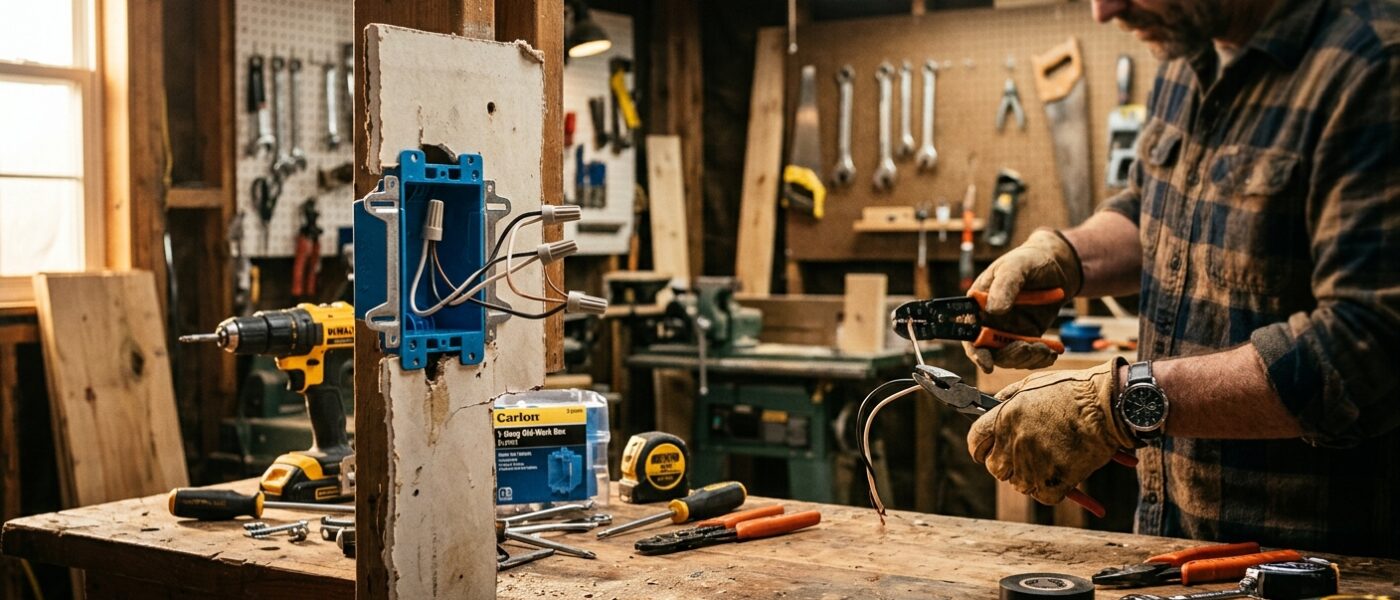

Best Junction Box Kits for DIY Electrical Projects

Electrical junction boxes connect circuits, protect wire splices, and provide access points for future work. Choosing the right box type and volume is one of the first steps in any wiring project. Undersized boxes violate code and create heat buildup that degrades wire insulation over time.

Box Types and Applications

• Old-work (retrofit) boxes: Install into finished drywall without opening the wall. Plastic wings or metal ears grip the drywall from behind. Use when adding an outlet or switch to an existing wall.
• New-work boxes: Nail or screw directly to studs before drywall installation. The standard for new construction and major renovations.
• Metal boxes: Required for metallic conduit systems and whenever the box serves as the ground reference. Self-grounding devices are available for metal boxes.
• Round pancake boxes: Surface-mount to ceilings for fixture installations. Used for ceiling fans and light fixtures where a standard switch box would not provide sufficient support.

Top Picks

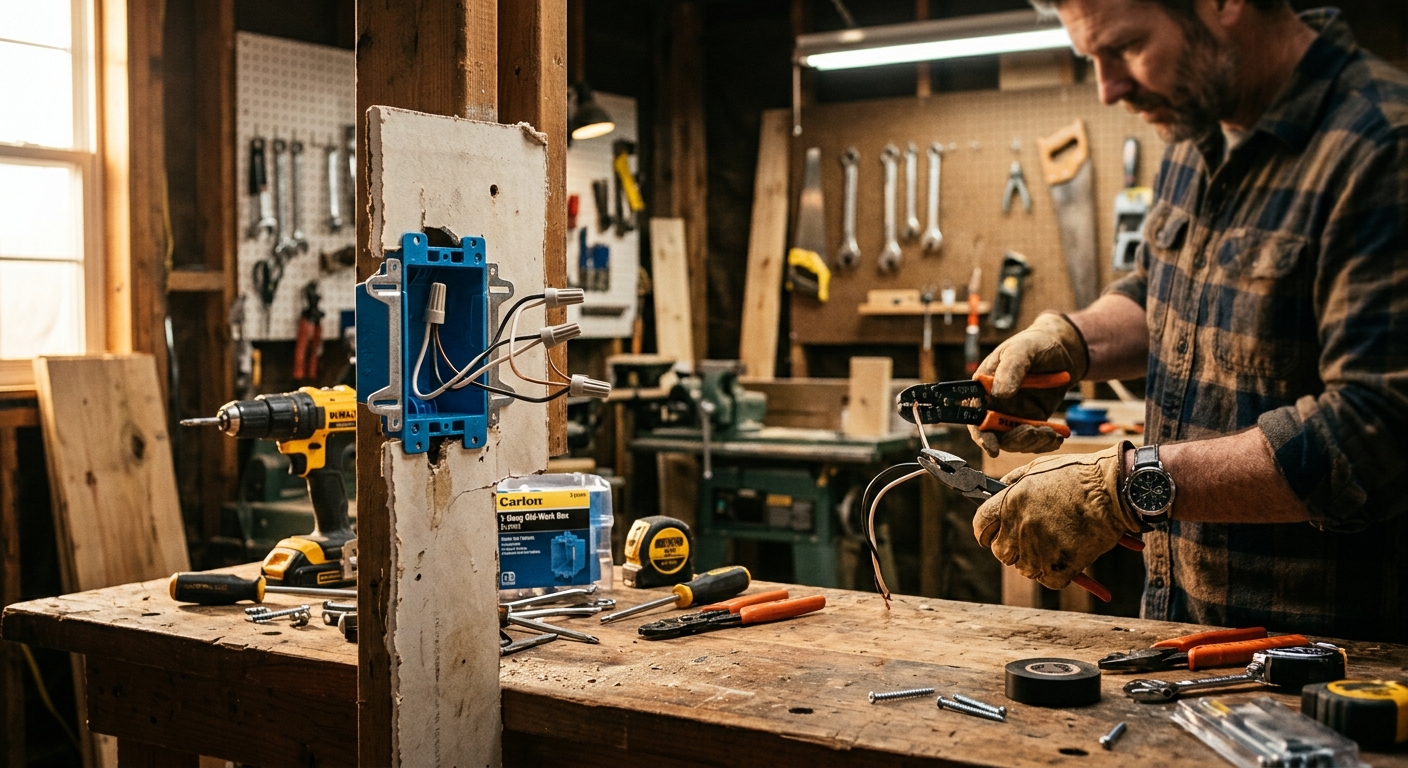

Carlon B114RB Old-Work Box (2-pack)

The most common retrofit electrical box for residential use. Fit into drywall with a jab saw, insert the box, and tighten the wings. Rated for single devices (outlet or switch).

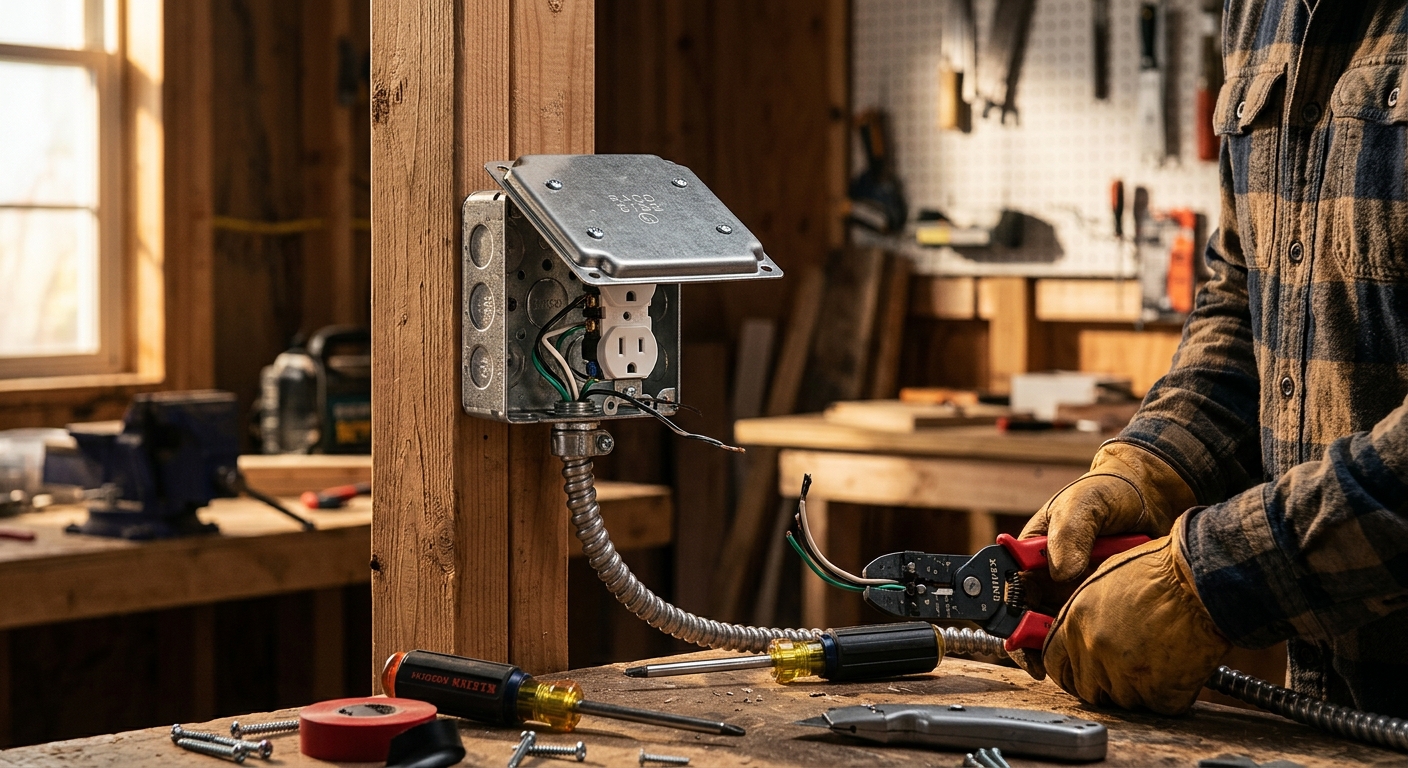

Raco 8182 Raised Cover Metal Box Kit

Surface-mount metal box for exposed wiring in basements, garages, and workshops. Complete kit includes box, raised cover, and hardware for conduit entry.

FAQ

How do I calculate box fill?

Each 14-gauge wire or device counts as 2 cubic inches; each 12-gauge counts as 2.25 cubic inches. Add up all conductors entering the box plus 2 for the device and 1 for all ground wires combined. The total must not exceed the box’s rated cubic-inch capacity stamped on the inside.
